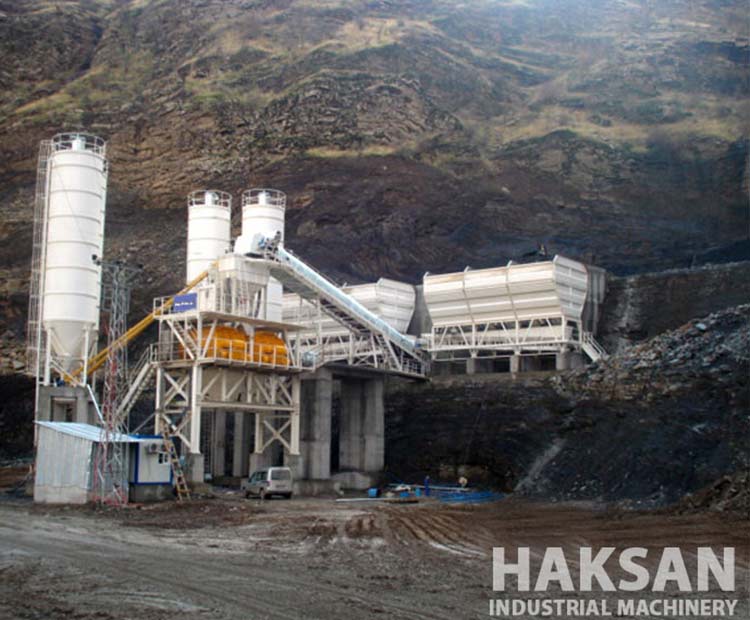

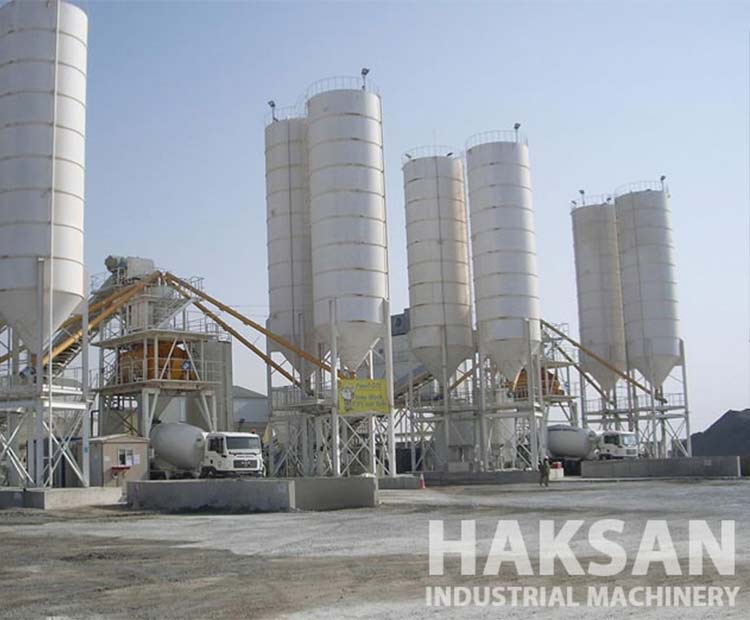

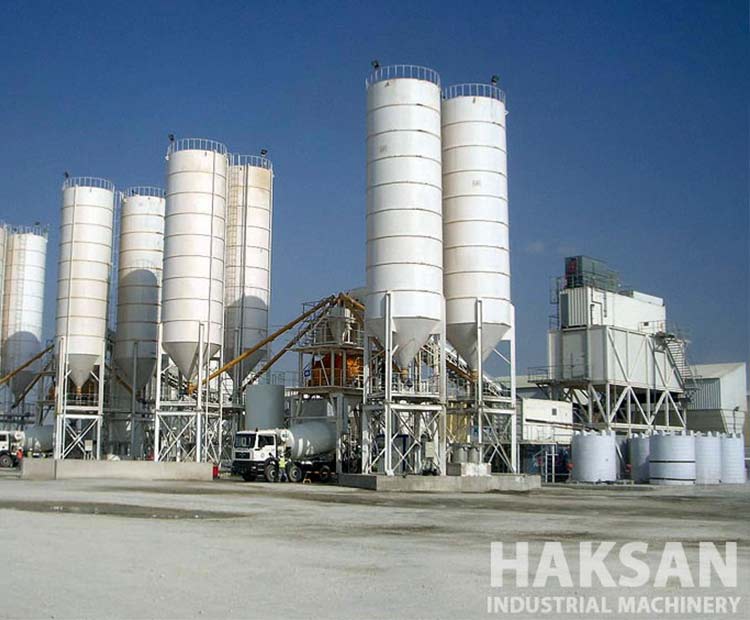

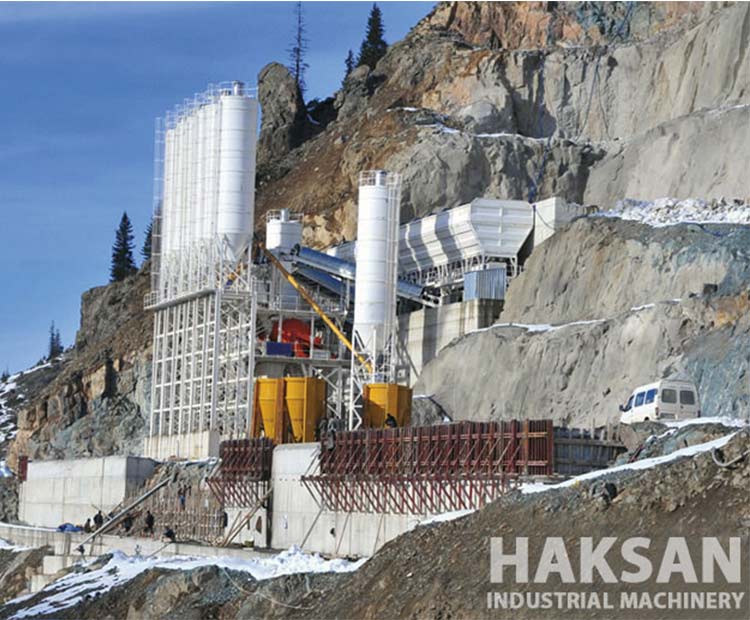

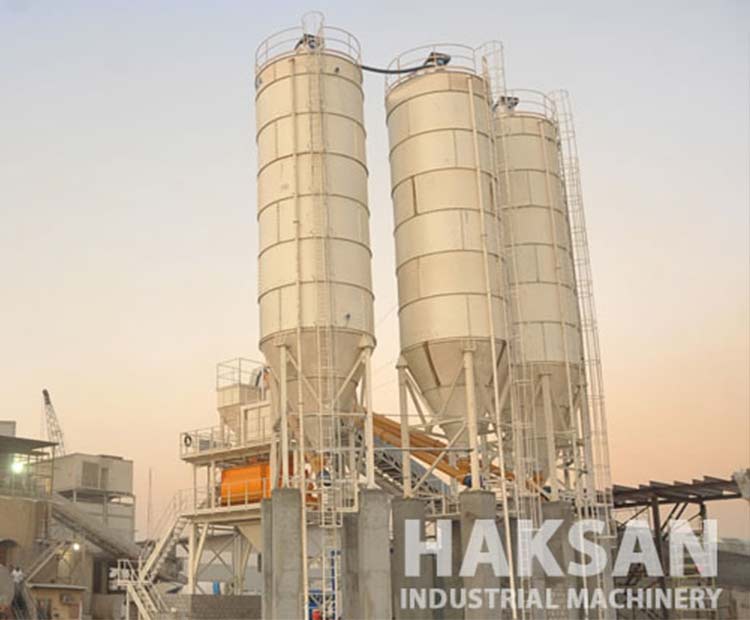

HB-200W Stationary Concrete Batching Plant

HB-200W Sabit Beton Santrali

HB-200W Stationary Concrete Batching Plant

Why HB-200W Stationary Concrete Batching Plant?

  • Easy Transportation and Fast Installation
  • One Double Axle Trailer Needed For Transportation
  • Top Quality Components
  • Prompt Reply For Service And Spare Parts
  • Hardwearing Mixer Linings
  • Manufactured For Heavy Duty Operations
  • Reduced Power Consumption On Account Of Short

Specification Value Unit
Compacted Concrete Output 200 m3/hr
Batch Count 40 cycle/hr
Mixer Capacity (compacted) 5,0 m3
Mixer Capacity 7,5 m3
Mixer Motor Power 2x90 kW
Aggregate Compartments Qty. 6-8 Quantity
Aggregate Compartment Capacity 30-50 m3
Aggregate Weighing Conveyor 2x1.000x12.000 mm
Mixer Feeding Conveyor 1.200x34.750 mm
Aggregate Weighing 9.900 kg
Cement Weighing 2.000 kg
Water Weighing 1.200 lt
Additives Weighing 60 kg
Cement Screw Conveyor 323x12.000 mm
Cement Silo 2-4 Quantity
Cement Silo Capacity 75-100-150-200-250 ton



  • HB-200W Sabit Beton Santrali
  • HB-200W Sabit Beton Santrali
  • HB-200W Sabit Beton Santrali
  • HB-200W Sabit Beton Santrali
  • HB-200W Sabit Beton Santrali
Video will be added.
